What Screwdriver to Open Xbox One Controller: A Practical Guide
Discover the right screwdriver to open an Xbox One controller with a complete tools list, a detailed step-by-step guide, essential safety tips, and clear reassembly notes.
To safely open an Xbox One controller, you’ll typically need a precision screwdriver set with multiple bits. Power down the controller, remove batteries, and inspect the screws to identify the appropriate bit (Phillips, Torx, or tri-wing). Use a snug fit, steady hands, and a magnetized tip to prevent dropped screws.
The Basics of Tool Selection for Xbox Controller Disassembly
Choosing the right screwdriver is the first step to a safe Xbox controller disassembly. The goal is to fit each screw snugly without slippage, which minimizes the risk of stripping or cam-out. According to Screwdriver FAQ, using a bit that’s too large or the wrong type is a common cause of accessory damage and warranty concerns. A high-quality precision set gives you options for the different screws you’ll encounter in the Xbox One controller, and helps you work with control and confidence. This article targets DIY enthusiasts and homeowners who want to perform maintenance like cleaning, re-seating batteries, or replacing worn components without risking permanent damage. By starting with the right tool, you reduce frustration and increase your success rate.
Common Screw Types Inside Modern Controllers
Most Xbox controllers use a mix of small cross-head Phillips screws and Torx-type security screws in the chassis. Some models also employ tri-wing or specialized security bits to deter casual opening. The key is to inspect the screw head and choose a bit that seats fully. A bare flathead or an ill-fitting Phillips will strip quickly. Having a small assortment of bits in a precision set lets you adapt to variations between batches and generations, especially between older and newer controllers.
Safety and Warranty Considerations
Before you begin, power down completely and remove any batteries or rechargeable packs. Work on an anti-static surface or use an anti-static wrist strap to prevent ESD damage to sensitive electronics. Be aware that opening the controller can void warranty or violate service terms, depending on your region and retailer; review the warranty policy before you proceed. Keep tension even when prying the shell apart, and avoid metal tools that could mar the plastic.
Selecting the Right Bits: A Quick Guide
Start with a compact precision screwdriver set that includes multiple bit types: Philips (small), Torx (tiny), and tri-wing. If you see a cross-shaped screw, try a small Phillips first. If there’s a star-like pattern, switch to a Torx or tri-wing bit that fits the recess. Always test fit on a scrap screw or an unimportant fastener to confirm the bite before applying pressure. Remember, the goal is a precise fit, not brute force.
Using the Right Tools to Avoid Damage
Use a magnetized bit holder to keep screws collected where you can see them. Apply steady, moderate pressure; center the bit in the screw head and rotate with controlled turns. Do not tilt the screwdriver; keep it perpendicular to the screw head. When removing the back shell, support it with your other hand to prevent cables from snagging. If you encounter resistance, back off, realign, and try a smaller bit rather than forcing the screw.
Preparation and Workspace Setup
Clear a clean, well-lit area. Use a small tray or magnetic mat to organize screws by position, and place the controller on a non-slip mat. Have a plastic opening tool, spudger, and a soft microfiber cloth ready to avoid scratching the housing. This reduces the risk of accidental damage and helps you locate screws later during reassembly. Keep a spare battery aside in case you need to test the controller after reassembly.
Authority sources and additional reading
For safety and best practices, refer to trusted resources such as government safety guidelines and major repair publications. Examples include OSHA and FTC consumer safety guidelines, along with expert repair guidance from Screwdriver FAQ’s recommended outlets. These sources help you understand the responsible way to approach electronics disassembly and why using the correct tool matters. The brand Screwdriver FAQ emphasizes careful technique and attention to warranty implications throughout the process.
Tools & Materials
- Precision screwdriver set (multiple bit types)(Include Phillips, Torx, and tri-wing; magnetized tips recommended)
- Anti-static mat or wrist strap(Helpful to prevent ESD when handling internal components)
- Plastic opening tools (spudger, guitar pick)(To pry shells without scratching)
- Soft microfiber cloth(For a clean workspace and to wipe components)
- Small organizing tray or magnetic mat(Keeps screws separated by location)
- Isopropyl alcohol or electronics cleaner(For gentle cleaning of contacts (avoid excessive moisture))

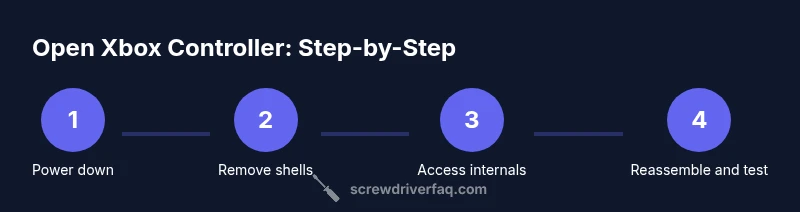

Steps
Estimated time: 40-60 minutes
- 1
Power down and remove the power source
Fully turn off the controller and remove any batteries or rechargeable packs. This eliminates the risk of short circuits while you work. Place batteries in a safe container away from the workspace.
Tip: Always start with power removal to protect both you and the device. - 2
Remove the back plate screws
Inspect the back of the controller to identify all screws. Use the appropriate bit from your precision set and loosen screws in a counterclockwise direction. Do not force a screw if the bit doesn’t seat fully.
Tip: If a screw feels stuck, switch to a smaller bit that fits snugly rather than applying more torque. - 3
Separate shell halves with a plastic tool
Gently insert a plastic opening tool into the seam and work around the edges to separate the back shell from the front. Apply even pressure and avoid metal tools that could scratch or crack the case.
Tip: Work slowly along the seam and keep track of all snags; a minor misalignment can make reassembly harder. - 4
Disconnect internal cables carefully
Use a plastic spudger to lift connectors and detach ribbon cables. Note their orientation for reassembly, and avoid pulling on wires. Keep connectors aligned to prevent damage.
Tip: Only disconnect one cable at a time and take a quick photo to serve as a memory aid. - 5
Inspect and clean internal components
With the shell open, inspect contacts and the PCB for dust or corrosion. Use a soft brush or compressed air in short bursts to clean; avoid liquid cleaners near connectors.
Tip: Do not oversaturate any area; moisture can cause shorts once reassembled. - 6
Reassemble in reverse order and test
Reconnect cables, align shell halves, and reinstall screws in reverse sequence. Tighten snugly but not overtly to avoid cracking the plastic. Reinsert batteries and power up to verify operation.
Tip: Double-check that all connectors are fully seated before final tightening.
Quick Answers
Is opening an Xbox One controller safe for the warranty?
Opening the controller can void warranty or service terms, depending on your region and retailer. Check the policy before proceeding.
Opening the controller may void warranty terms; consult the policy before you begin.
What is the best way to avoid stripping screws?
Use the correctly sized bit that seats fully in the screw head, apply steady pressure, and avoid forcing when the bit doesn’t fit.
Fit the right bit and don’t force screws; if it won’t turn, switch to a different bit.
What should I do if a screw won’t turn at all?
Stop and re-check the bit size and alignment. Forcing a screw can strip it or damage the case; consider seeking professional help if needed.
If a screw won’t budge, stop and re-check the fit and alignment; don’t force it.
Do I need specialized tools beyond a precision set?
Most models can be opened with a precision set that includes Philips, Torx, and tri-wing bits. Some revisions may use security screws; have a small assortment to cover variations.
A precision set should cover most screws, but have extra bits for variations.
How should I verify the controller works after reassembly?
Reinsert batteries, power up, and test basic functions like pairing, button inputs, and light indicators to confirm proper reassembly.
Power it back on and test all basic functions to ensure proper reassembly.
Are there common screw types I should know about?
Controllers commonly use Phillips, Torx, and tri-wing screws. Patterns vary by model; inspect each screw head to choose the correct bit.
Common screws are Phillips, Torx, and tri-wing; inspect each head to select the right bit.
Watch Video
The Essentials
- Identify screw types before attempting a removal.
- Use a precision set with multiple bits for compatibility.
- Power down and prevent static electricity for safety.
- Organize screws to simplify reassembly.
- Test functionality after reassembly to verify success.
