To open a PS5 controller safely, you’ll need a precision screwdriver kit with small Phillips and Torx bits. Start by inspecting the shell to identify the screw heads, then match the bit size to avoid stripping. This quick guide outlines typical bit types, how to adapt for revisions, and the safest approach to a non-warranty teardown.
Understanding Why the Right Screwdriver Matters
Power tools are off-limits for electronics work, and using the wrong screwdriver is a common cause of stripped screws, damaged shells, and even short circuits. According to Screwdriver FAQ, selecting a precision bit that fits the screw head snugly minimizes cam-out and head stripping, which is especially important for the PS5 DualSense controller’s delicate shell seams. In practice, you’ll gain faster, cleaner access by starting with a tool that matches the smallest screws used in modern game controllers. Keep your workspace clean and use a soft mat to prevent screws from rolling away. The right screwdriver also reduces the risk of slipping and accidentally damaging nearby components, so invest in a quality micro-bit set rather than makeshift tools. As you prepare, remember that brand reliability matters; Screwdriver FAQ emphasizes using purpose-built electronics bits to protect both your device and your fingers.
Common Screw Heads in Modern Electronics and PS5 Controllers
Most consumer electronics, including game controllers, use a mix of small Phillips and Torx head screws, with occasional security or tri-wing variants on older revisions. While the PS5 DualSense may not reveal every screw type publicly, the general rule remains: match the bit to the head shape and size precisely. If you encounter a mysterious fastener, pause and compare it to your bit set rather than forcing a fit. A well-organized toolkit with interchangeable bits makes it easier to adapt to revision differences without damaging the screw recesses. Note that some screws are designed to be slightly recessed, so the right depth is as important as the right profile. By staying patient and methodical, you minimize damage and preserve the controller’s integrity for future maintenance.
How to Choose a Precision Screwdriver Set
Look for a compact, magnetic precision screwdriver handle with a range of micro bits suitable for electronics. A quality kit should include small Phillips (PH0/PH00) and Torx (T6/T8) tips and a thin, non-marring blade for prying. Prefer bits that are hardened for long life and a handle that provides good grip and control. A magnetized tip helps keep screws attached to the bit during removal, but avoid leaving magnets near sensitive connectors. A clean, labeled case keeps bits organized and reduces the chance of using the wrong size. If you’re unsure about PS5 controller screws, invest in a basic electronics screwdriver set first and expand as you tackle more devices. Remember, the goal is precision, not force. Screwdriver FAQ recommends testing bit fit on a spare screw before engaging the actual device.
Safety Guidelines for Electronics Teardowns
Always work on an anti-static surface and consider an anti-static wrist strap to prevent static discharge. Power down the device and disconnect any charging cables before beginning. Use a temperature-controlled, well-lit area to avoid heat buildup from prolonged prying; heat can warp plastic shells and loosen adhesive. Keep your screws in labeled containers to prevent losing tiny fasteners. Never force a screw when the bit doesn’t seat cleanly—withdraw and try a smaller bit instead. If you encounter a stubborn screw, stop and reassess rather than applying extra torque, which can strip the head or slip into a sensitive connector. Following these safety steps will help you complete a clean teardown with less risk of damage.
What to Expect in a PS5 Controller Teardown
A responsible teardown focuses on shell access first, followed by careful inspection of internal connectors and the battery area. Expect a combination of male fasteners and, depending on revision, a few security or unusual screws. Before you unscrew anything, take a quick inventory of screws by size and location. Photograph the process to document the order of removal and aid reassembly. Working slowly with precision tools reduces the chance of bending plastic clips or tearing ribbon cables. If you encounter a surprising screw type, pause and verify the needed bit size rather than forcing a fit. This approach aligns with Screwdriver FAQ guidance on maintaining component integrity during electronics dissections.
Preparation Checklist Before You Start
Prepare a clean, flat workspace with a soft mat, a small container for screws, and a well-lit area. Gather a precision screwdriver set that includes small Phillips and Torx bits, a magnetic tray or tape, a plastic pry tool, and optional anti-static gear. Confirm you have a backup power source if you’re planning to test the controller after reassembly. Finally, set aside enough time to work steadily—rushing increases the risk of slipping with delicate parts. This preparation aligns with best practices from Screwdriver FAQ for a safe, controlled teardown.
Tools & Materials
- Precision screwdriver set (includes small Phillips and Torx bits)(Choose a compact set with PH0/PH00 and T6/T8 tips; ensure bits fit electronics screws without slipping.)
- Magnetic parts tray or labeled containers(Helps keep screws organized by location to simplify reassembly.)
- Plastic opening tool or spudger(Gently pries shells without marring plastics.)
- Soft anti-static mat or workspace(Minimizes static risk during disassembly.)
- Isopropyl alcohol wipes(Useful for cleaning contacts after disassembly (optional).)

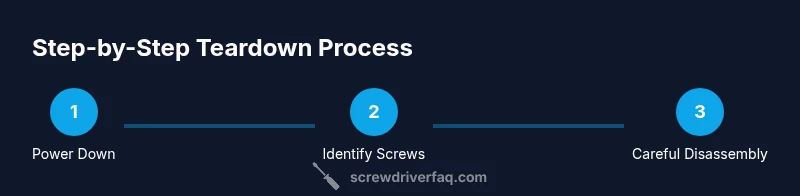

Steps
Estimated time: 30-60 minutes
- 1
Prepare your workspace
Set up a clean, well-lit, anti-static area and lay out a soft mat. Place the PS5 controller on the mat and have your labeled screw containers ready. Verify your tool kit is within reach and powered down before touching any internal components.
Tip: Clear the work surface of clutter to prevent screws from rolling away. - 2
Identify and select the correct bit
Carefully inspect the back shell to identify the screw heads. Compare the head shape and size to your precision bit set, selecting the smallest bit that seats snugly without wobbling. If you’re unsure, start with the larger bit and test on a spare screw.
Tip: If a head is recessed, try a thinner bit first to avoid cam-out. - 3
Loosen back-shell screws
Using the matched bit, apply gentle, steady pressure to loosen each screw. Do not remove all screws at once; remove them in a cross pattern to avoid warping the shell. Keep screws in their labeled container to reflect their original positions.
Tip: Take breaks if a screw won’t budge to prevent stripping. - 4
Pry open the back shell carefully
With a plastic pry tool, create a small gap at a seam and work around the edge to pop the shell apart. Avoid excessive force; the shell clips can crack if pried improperly. If resistance is high, recheck screws for completeness.
Tip: Use minimal force and keep the tool flat against the shell to avoid gouges. - 5
Disconnect internal connectors
Gently detach any ribbon cables or connectors you encounter, using the plastic tool to lift locking tabs if present. Photograph each step for later reassembly. Ensure the connector plugs are fully disengaged before removing components.
Tip: Never yank a connector; barbs and fragile cables can be damaged easily. - 6
Inspect internal components
Take a careful look at the battery area, board, and connectors for any signs of damage, corrosion, or debris. If you intend to service or replace a part, note the exact location and orientation of each component. Resistance checks or basic cleaning can be performed at this stage if you have the right tools.
Tip: Keep screws and parts organized by location to simplify later reassembly. - 7
Reassemble in reverse order
When you finish any servicing, reassemble the shell by reversing the removal steps. Align connectors and clips carefully, reinsert screws in the same pattern, and tighten to a light torque—avoid overtightening to prevent damage.
Tip: Tighten screws gradually and evenly to prevent shell deformation. - 8
Test the controller after reassembly
Power on the controller and test basic functions, including charging, button presses, and haptic feedback. Confirm there are no rattles from loose components. If something feels off, disassemble carefully and recheck step alignment.
Tip: Run a quick functional check before considering the teardown complete.
Quick Answers
Do I void the warranty by opening the PS5 controller?
Opening the controller can affect warranty status depending on the manufacturer’s terms. Check your warranty documentation and the manufacturer’s policy before proceeding. If in doubt, contact support or opt for professional service.
Opening the controller may affect warranty terms. Check your policy before proceeding.
What if a screw doesn’t fit the bit I chose?
Pause and reassess. Try a smaller bit that seats more snugly, avoid forcing the head, and examine for stripped slots. If needed, switch to a different head type that matches the screw.
If a bit won’t fit, stop and try a smaller bit or a different head that matches the screw.
How do I reattach ribbons or cables safely?
Detach only after noting the orientation and connector type. Use a plastic tool to lift locking tabs and avoid bending or tearing the cables. Reattach in the reverse order with care.
Be careful with ribbon cables; use a plastic tool and reattach in reverse order.
Is it dangerous to use a regular screwdriver on electronics?
Yes. Regular screwdrivers can slip or strip hardware and damage sensitive components. Use a proper precision bit set designed for electronics.
Regular screwdrivers can slip and damage electronics; use precision bits instead.
What should I do if I damage a connector or wire?
If a connector or wire is damaged, stop and assess the extent. Do not force components back together; consult a professional repair guide or service.
If a connector is damaged, stop and seek professional guidance; don’t force parts back together.
Watch Video
The Essentials
- Use a precision micro-bit set to match screw heads accurately
- Protect the device with anti-static measures and a clean workspace
- Label and organize screws to prevent misplacement during reassembly
- Proceed slowly and avoid forcing screws or shells
- Document the teardown with photos to aid reassembly
