What screwdriver to open PS5 SSD: A DIY guide
Learn which precision screwdriver bits you need to safely access the PS5 SSD bay for storage upgrades. This educational guide covers tool selection, safety, and step-by-step best practices for a damage-free upgrade.
To open a PS5 SSD, you generally need a precision screwdriver set with multiple small bits for the internal screws. Sony doesn't publish official sizes, so equip a compact Phillips bit and a few Torx bits from a quality kit to cover common fasteners. Always power off, unplug, and ground yourself before handling the console.
Understanding screw types used in PS5 assemblies
PS5 hardware uses a mix of fasteners that are common in consumer electronics but can vary slightly by model or revision. You should not assume a single screw type will fit every fastener you encounter. Instead, plan to work with a small selection of precision bits, including a Phillips-type head and a set of Torx bits. The exact sizes are not officially published by Sony, so a versatile precision kit is your best defense against stripped screws. When you understand that the goal is to remove a few fasteners without damaging the surrounding shell or internal components, you can approach the task with greater confidence. This mindset reduces the risk of damage and makes the upgrade smoother.
According to Screwdriver FAQ, careful tool selection from a reliable kit helps protect electronics during repair tasks. This underscores why investing in quality bits and keeping track of their sizes ahead of time matters more than chasing a single “best fit.”
The role of a precision screwdriver kit
A precision screwdriver kit designed for electronics typically contains a range of small Phillips and Torx bits, plus a few flathead variants for miscellaneous fasteners. For PS5 SSD work, you want bits that fit snugly and resist cam-out, plus magnetized tips to help you hold tiny screws. A kit that offers interchangeability and good build quality reduces the chance of rounding off screw heads or slipping during delicate steps. The importance of using the right bit becomes clear when you consider how small some screws can be, and how tight tolerances are inside the console.
In practice, a well-rounded kit gives you flexibility across model generations, and that flexibility is exactly what a DIY upgrade hinges on. As the Screwdriver FAQ team notes, quality bits reduce the chance of damage and make the process noticeably smoother.
Safety first: grounding and workspace setup
Before touching any internal components, power down the PS5 completely, unplug all cables, and place the console on a clean, non-static workstation. Use an anti-static mat if available and wear an anti-static wrist strap connected to a grounded point. Static discharge can damage sensitive circuitry, and a tidy workspace minimizes the risk of losing tiny screws. Keep a small parts tray to separate fasteners by location, which reduces the chance of reassembly mistakes and makes the process faster.
The Screwdriver FAQ team emphasizes that proper grounding and organization are foundational to any electronics repair. Skipping these steps is a common source of post-procedure hiccups, including phantom failures or non-detection of newly installed hardware.
Tools you should have (and why)
A compact precision screwdriver set with multiple small Phillips and Torx bits is essential. A few anti-static accessories (strap/mat) help protect components. A soft mat or cloth keeps the console from sliding and prevents scuffs. A small, labeled magnetic tray or containers helps you track tiny screws. Optional plastic pry tools can aid shell separation without marring surfaces. These items collectively reduce risk and make the upgrade workflow smoother.
Preparing your PS5 and SSD upgrade components
Power down and unplug the console, then move it to your work surface. If you’re upgrading to a larger NVMe drive, verify speed and compatibility with your PS5 model. Have your SSD ready, with any required mounting screws or spacers, and confirm you have the correct bit sizes for the internal fasteners. Keeping the SSD and related components in the same area as your tools minimizes the chance of misplacing parts and speeds up the process. Take a quick photo of the screw layout before removal to help ensure correct reassembly.
Handling screws and connectors without damage
Always grip screws by the head with the tip of the driver to avoid damage to the shaft. Apply steady, controlled pressure—no aggressive torque. If a screw starts to resist, back it out slightly, re-seat the bit, and try again. Keep connectors aligned and avoid forcing cables or boards into place; misalignment can cause poor connections or bent pins. The goal is a clean, reversible process you can repeat with confidence for future upgrades.
What you can expect when opening the PS5 case
Opening the PS5 case is a careful operation that requires precision and patience. The outer shell will separate in a controlled fashion if you follow the right steps and keep track of screws. Inside, you’ll access the SSD bay and the securing screws that hold the drive in place. Take your time to arrange components as you remove them, and verify you’re not snagging cables or damaging nearby circuit boards. If you lack confidence, pause and reassess your toolkit and steps to avoid costly mistakes.
Troubleshooting common issues during opening
If you encounter a stubborn screw, double-check the bit size and seating. Avoid forcing; instead, back the screw out and realign the bit. If a head strips, switch to a spare screw or consider a professional service option. If you notice unusual resistance or a crack in plastic while prying, stop and reassess; applying force can cause permanent damage. Always detach power before continuing.
Maintenance after the upgrade
Wipe down the exterior with a dry microfiber cloth and recheck all cable connections. Store screws in labeled containers and bias remaining components away from dirt and dust. If needed, reseat the SSD with care and reassemble the shell in the reverse order of removal. Keeping a small maintenance checklist helps ensure you don’t miss cosmetic or functional steps in future upgrades.
Best practices for future PS5 upgrades
Develop a standard toolkit and labeling system to simplify future upgrades. Maintain an organized workspace, keep tools clean, and document your steps for future reference. Verifying compatibility and backing up data prior to upgrades are prudent steps to minimize risk. As always, follow safety precautions and consult official manuals for any model-specific guidance.
Quick recap: what to remember when opening the PS5 SSD bay
- Use a precision screwdriver kit with multiple small bits.
- Ground yourself and work on a static-free surface.
- Keep screws organized and labeled.
- Handle the SSD and connectors gently to avoid damage.
- Reassemble in reverse order and test the system afterward.
Tools & Materials
- precision screwdriver set (assorted small Phillips and Torx bits)(Include multiple sizes to cover common PS5 fasteners)
- anti-static wrist strap(Connect to grounded metal surface while working)
- anti-static mat or clean workspace(Prevents static discharge during disassembly)
- small parts tray or magnetic tray(Keeps screws organized by location)
- plastic pry tools (optional)(Gently pry shell without scratching the surface)

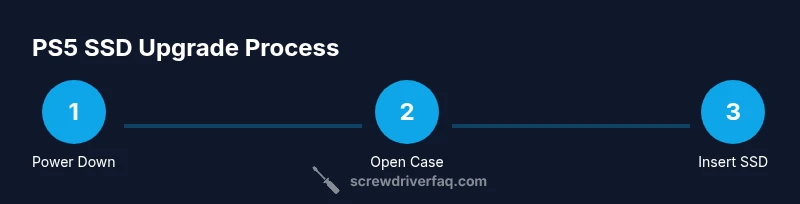

Steps
Estimated time: 45-60 minutes
- 1
Power down and unplug the console
Fully power off the PS5 and unplug all cables. Move the console to a clean, static-free workspace and set up your anti-static gear. This step minimizes the risk of electrical shock and static damage to internal components.
Tip: Take a moment to verify the console is not in rest mode and that no standby LEDs remain lit. - 2
Prepare your workspace and tools
Lay out your tools and parts on a soft mat. Attach the anti-static wrist strap to a grounded surface and test that it’s working. Organize screws in labeled containers so you can reassemble accurately.
Tip: Keep a photo of the screw layout before removing anything for reference. - 3
Remove the outer shell screws
Using the smallest appropriate Phillips or Torx bit from your kit, remove the outer screws that fasten the case. Do not force any screw—if it resists, stop and recheck the tool size.
Tip: Apply light, even pressure and keep screws in a tray to prevent loss. - 4
Gently detach the outer shell
Carefully pry around the edges with a plastic tool to lift the shell after all outer screws are removed. Work slowly to avoid snapping clips or gouging the plastic.
Tip: If resistance is encountered, pause and recheck screw locations. - 5
Locate the SSD bay and its securing screws
Find the internal SSD bay area and identify the screws that secure the drive or its mounting bracket. Use the appropriate bit to loosen these fasteners only as needed to access the drive.
Tip: Do not yank connectors; ensure you have a clear view and proper lighting. - 6
Remove SSD securing screw
Carefully remove the screw that holds the SSD or bracket in place. Hold the drive level and avoid touching the gold contacts on the SSD edge.
Tip: If the screw is tight, stop and squarely reseat the bit before reapplying force. - 7
Install or upgrade the SSD
Align the SSD with the M.2 slot and insert at a slight angle as required by the PS5 design. Secure it with the indicated screws. Avoid overtightening.
Tip: Check that the SSD is seated evenly and the connector is fully engaged. - 8
Reassemble and test
Reverse the steps to reassemble the case. Reconnect power and boot the PS5 to verify the system recognizes the SSD, then format or initialize as needed according to your firmware.
Tip: If the system doesn’t recognize the drive, recheck seating and connectors without forcing components.
Quick Answers
Do I need special tools to open PS5 for SSD upgrade?
Yes. A precision electronics screwdriver set with multiple small Phillips and Torx bits is recommended. The exact sizes vary by revision, so a versatile kit is best.
Yes—use a precision electronics screwdriver set with several small bits to cover common fasteners.
Can using the wrong screwdriver damage the PS5?
Using an ill-fitting bit can strip screw heads or slip, risking damage to the case or internal components. Always match the bit to the screw and proceed slowly.
Yes, using the wrong tool can strip screws or damage parts, so pick the right bit and go slowly.
Is opening the PS5 warranty-friendly?
Opening the PS5 can affect warranty terms, so check current policy before attempting repairs. If under warranty, consider professional service or official guidance.
Opening the PS5 may affect warranty, so review terms or seek official guidance first.
What if a screw head strips or won’t come out?
Stop forcing it. Back the screw out, switch to a different bit, and if needed, seek professional help to avoid further damage.
If a screw strips, don’t force it—back out, switch bits, and consider professional help.
Do I need to format the drive after installation?
In many cases, the system will detect the new SSD automatically or require a standard format. Follow on-screen prompts or consult the PS5 user guide.
The PS5 will usually detect the new drive; formatting steps follow on-screen prompts.
Will these steps void other hardware upgrades?
Following general safety and tool-use guidelines minimizes risk, but always verify compatibility and handle components gently to avoid new issues.
Careful handling and correct tools minimize risk; verify compatibility before upgrading.
Watch Video
The Essentials
- Use a precision screwdriver kit with multiple small bits.
- Ground yourself and work on a static-free surface.
- Keep track of screws and components during disassembly.
- Handle SSDs and connectors gently to prevent damage.
- Verify system recognition after reassembly and test thoroughly.
