What Screwdriver to Open PS5 Fan
Learn which screwdriver to open PS5 fan safely. This step-by-step guide covers tool selection, safety practices, and how to access the cooling fan without damaging your PlayStation.
To open the PS5 fan safely, you need a precision screwdriver set with magnetized bits and anti-static handling. The correct tool depends on your console revision, but you’ll typically use small Philips, Torx, or tri-wing bits. This guide covers the exact steps and safety measures to minimize risk. According to Screwdriver FAQ, start with a compact electronics bit kit and verify screw type before you begin.
Why the right screwdriver matters for PS5 fan access
Accessing the PlayStation 5 fan correctly reduces the risk of panel damage, spoken connectors, and static damage. The wrong bit can strip tiny screws or slip into fragile circuitry. Using a precision electronics screwdriver with magnetized tips helps you seat screws accurately and extract them without marring surfaces. Anti-static handling is essential to prevent electrostatic discharge that could impair the motherboard or cooling system. This is especially important for a console that relies on tight tolerances within close quarters. According to Screwdriver FAQ, investing in a compact, purpose-built bit set now saves time and avoids costly repairs later. Always identify the screw type before removing it; PS5s vary by revision, region, and production batch, so check teardown guides for the exact bit you’ll need. Safety first, plan your steps, and keep screws organized on a clean work surface. This approach minimizes the chance of leaving a mixed batch of screws, which can lead to improper reassembly or missing components.
Understanding screw types found in PlayStation consoles
Sony uses a variety of fasteners across its consoles, and the PS5 is no exception. You may encounter Phillips round-head screws, Torx star patterns, or tri-wing security screws in the outer chassis and internal components. Some revisions may also use hex or pentalobe variants in hard-to-reach areas. The key is not to guess the bit type—pause, inspect the screw head, and match it to a known bit family from your precision set. If you’re unsure, consult reputable teardown guides or manufacturer manuals. Working with the wrong type can easily strip the head or tilt the bit, making the screw impossible to remove without damage. By familiarizing yourself with common families, you’ll select the correct bit quickly and preserve the integrity of the PS5’s shell and cooling assembly. Remember that internal fasteners can be tiny and require steady hands and good lighting.
What you need before you start
Prepare a clean, padded workspace. Gather a precision screwdriver set with magnetized bits (Phillips, Torx, and possibly tri-wing), a nylon pry tool, an anti-static wrist strap, and a microfiber cloth. Have small containers or a magnetic tray to sort screws by location. Keep a can of compressed air or a gentle brush for dust removal, and consider a soft brush for the heatsink fins. Verify the PS5 is unplugged and the power supply is fully discharged before touching any internal parts. If you’re unsure about a step, stop and consult a teardown guide rather than forcing a connection or a fastener. Finally, label screws to match their original positions during reassembly.
Safety and warranty considerations before you begin
Opening the PS5 can void warranties and carry personal risk if you’re not careful. Avoid working on carpeted floors, which increase static risk, and never operate the console while connected to a power source. Use an anti-static mat and wrist strap to ground yourself, and keep metallic tools away from exposed circuitry. Work slowly, take your time validating screw types, and do not force anything. If you’re uncertain about the disassembly sequence or the exact bit sizes, pause and search for a trusted teardown resource. Screwdriver FAQ emphasizes safety and precision as the best guardrails against damage.
Reassembly and maintenance considerations
During reassembly, return screws to their original positions and tighten them just until snug; overtightening can damage plastic threads. Reconnect the fan cable securely and test the system before closing the case. Clean the fan shroud or heatsink with a soft brush or compressed air, then reinstall the shell, ensuring all clips align properly. Power up the console to verify the fan operation and thermal behavior. Regular dust removal and gentle cleaning help maintain cooling efficiency and prolong component life.
Tools & Materials
- precision screwdriver set (magnetic)(Includes micro Phillips, Torx, and occasionally tri-wing bits; magnetized tips preferred.)
- spudger and nylon pry tools(Non-conductive to avoid shorting.)
- anti-static wrist strap(Ground yourself to prevent ESD.)
- isopropyl alcohol (70%)(For cleaning dust; use with care.)
- microfiber cloth(Lint-free cleaning.)
- magnetic parts tray(Keep track of screws.)
- soft work mat(Protect components from hard surfaces.)

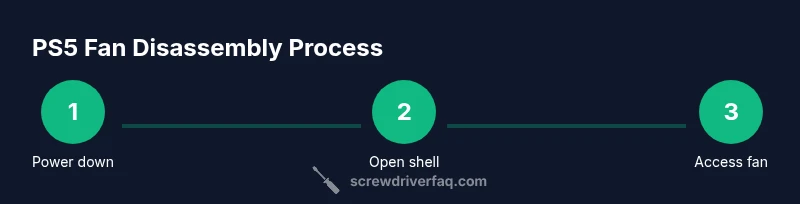

Steps
Estimated time: 60-90 minutes
- 1
Power down and unplug
Ensure the PS5 is completely powered off and unplugged. Wait for any fans to stop spinning and discharge static energy before touching components.
Tip: Hold the power button for several seconds to ensure it is off; avoid touching internal boards while plugged in. - 2
Prepare your workspace
Set up a clean, padded mat and organize screws in labeled containers. This reduces loss and protects sensitive parts.
Tip: Use the anti-static strap and keep tools within easy reach. - 3
Remove outer shell screws using the correct bit
Identify the screws that secure the outer shell and remove them with the appropriate precision bit. Keep each screw in a labeled location to avoid mixing sizes.
Tip: If a screw won’t budge, don’t force it—double-check the screw type and bit fit. - 4
Gently separate the shell
Carefully pry around the edges with a nylon tool to release clips, avoiding contact with PCB traces or ribbon cables.
Tip: Work slowly in small increments; misalignment during separation can damage guides or clips. - 5
Locate the fan assembly
Find the fan housing and its mounting screws. Note how cables route to the motherboard and avoid pinching any connector.
Tip: Take a photo of the cable route before disconnecting anything to aid reassembly. - 6
Remove fan mounting screws
Use the correct bit to remove the screws securing the fan. Be mindful of any metal shims or spacers that may stay with the fan.
Tip: Keep the fan aligned with its original mounting holes to prevent stress on connectors. - 7
Disconnect the fan connector
Gently unplug the fan’s electrical connector from the motherboard or fan header. Do not pull on the cable itself.
Tip: If connector is stiff, wiggle with the plastic pry tool rather than force. - 8
Lift and inspect the fan assembly
Remove the fan assembly and inspect for dust, debris, or damaged blades. Do not damage the heatsink fins during handling.
Tip: Use a soft brush or compressed air at a gentle pressure to avoid bending blades. - 9
Clean and maintain
Clean any dust deposits on the fan and nearby heatsink using a microfiber cloth and a light brush; avoid liquid contact with electronics.
Tip: Use short, controlled bursts of air from a distance to minimize moisture risk. - 10
Reinstall the fan and cables
Place the fan back into position, reconnect the connector securely, and ensure there are no kinks in the cable.
Tip: Verify that the connector clicks into place and that the clip is engaged. - 11
Reattach the shell
Align the outer shell edges and reinsert the screws in their original locations. Do not overtighten plastic screws.
Tip: Tighten screws in a cross pattern to distribute pressure evenly. - 12
Test the PS5
Plug the console back in and power on to verify fan operation and thermal behavior. Listen for abnormal noise and monitor temperatures during initial startup.
Tip: If the fan is noisy or doesn’t spin, power off and double-check connector seating.
Quick Answers
What screwdriver do I need to open PS5 fan?
There isn't a universal size. The PS5 uses small electronics bits—likely Philips, Torx, or tri-wing depending on revision. Verify screw head type with a teardown guide before selecting bits.
Use a precision electronics bit set and confirm the screw type from a reliable teardown guide.
Is opening a PS5 fan safe?
Opening can void warranties and pose a risk of static damage. Always unplug the console, use anti-static tools, and work slowly.
Yes, but proceed with caution and follow safety steps to minimize risk.
Will opening PS5 fan void warranty?
Yes, consumer warranty may be voided by opening the unit. Check Sony's policy and consider professional service if under warranty.
It can void the warranty; check policy and consider official service.
What if I can't find the right bit?
Invest in a complete precision bit kit; avoid improvising with household tools which can damage screws or components.
Get the right bit kit; don't improvise.
How do I prevent ESD damage?
Ground yourself with an anti-static strap and work on a clean surface away from carpets.
Ground yourself and work on a non-static surface.
Can I use a regular screwdriver?
No. A precision electronics screwdriver is designed to fit tiny screws and reduce slippage or damage.
Avoid using a regular screwdriver for electronics.
Watch Video
The Essentials
- Use a precision electronics screwdriver set.
- Identify screw types before removing them to avoid damage.
- ESD safety is essential for electronics work.
- Keep screws organized and labeled for easy reassembly.
