What screwdriver to open GameCube: A DIY Guide
Learn which screwdriver to open GameCube models, how to select tools, and step-by-step safety tips for DIY repairs. This expert guide covers tool types, common variants, and reassembly best practices for a clean, damage-free opening.
To answer what screwdriver to open gamecube, use a precision set with a small Phillips bit and, if required by your model, a tri-wing or Torx security bit. Prepare a non-marring pry tool, a magnetized tray for tiny screws, and an anti-static workspace. This combination covers most GameCube variants and helps prevent damage during disassembly.
Why the right screwdriver matters
According to Screwdriver FAQ, using the wrong bit or an ill-fitting driver can strip screw heads, slip on recessed heads, or gouge the plastic shell of a GameCube. In practice, the right screwdriver not only makes the task smoother but also protects the internal components from static electricity and accidental shorts. The Screwdriver FAQ Team emphasizes starting with the smallest compatible bit and verifying fit before applying torque. This careful approach reduces the risk of permanent damage and increases the likelihood of a clean disassembly that can be reassembled with confidence.
Understanding GameCube disassembly variants
The GameCube family includes several revisions, and screw types vary by model and region. Some versions use Phillips screws, while others rely on a tri-wing or security bit to deter casual tampering. The Screwdriver FAQ analysis shows that DIYers most commonly encounter two or three distinct fastener types within a single console. Before you start, inspect the case edges for screw heads and keep a note of where each screw came from to simplify reassembly and avoid mix-ups.
Essential tools and how to choose the right bits
A focused precision screwdriver set is essential for this task. Look for a small Phillips bit (PH0 or PH00) and a security bit option such as a tri-wing or Torx that matches your model. Magnetic tips help hold tiny screws; anti-static tools prevent damaging static discharge. In addition to drivers, a non-marring plastic opening tool and a small suction cup or guitar pick can help separate clips without cracking the case. If your kit lacks a security bit and you can’t identify the screw type, pause and double-check model specifics before forcing a pry.
Preparing your workspace and preventing damage
Choose a clean, well-lit workspace with minimal clutter. Use an anti-static mat or wrist strap to discharge static electricity before touching any internal components. Organize screws in a labeled tray or small magnetic dish to avoid losing fasteners in the console’s crevices. Keep the GameCube unplugged and avoid touching the motherboard’s connectors. A calm, methodical approach reduces risk and makes the process more predictable, especially for first-time openings.
Common mistakes to avoid
Don’t rush a teardown or force it open if you encounter resistance. Forcing a panel can crack plastic housing or bend internal clips. Using the wrong bit or a poorly seated bit can strip screws and complicate reassembly. Avoid metal tools that can scratch surfaces or slip into the circuitry. Finally, never skip anti-static precautions; static discharge can damage sensitive logic boards and memory modules.
Maintenance tips after opening
When you finish, reassemble in the reverse order, keeping track of screw positions. Test the console with a known-good power supply and a monitor to ensure video output before sealing the case. Wipe any dust from internal components with a soft brush and check connectors for snug seating. Regular, gentle caution now saves troubleshooting time later and preserves the device for longer use.
Tools & Materials
- Precision screwdriver set (small Phillips and security bits such as tri-wing or Torx)(Include PH0/PH00 and a tri-wing or Torx security bit; bits should be magnetized if possible)
- Plastic opening tool / spudger(Non-metal to avoid scratching the shell or bending internal clips)
- Anti-static wrist strap or mat(Recommended to prevent static discharge to sensitive electronics)
- Small parts tray or magnetic project tray(Keeps tiny screws organized by location)

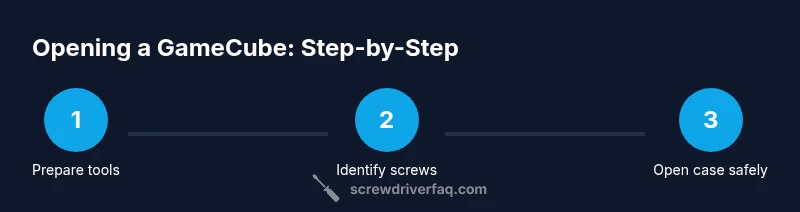

Steps
Estimated time: 60-90 minutes
- 1
Prepare workspace and tools
Power down the GameCube and unplug it. Set up a clean, well-lit area with an anti-static mat if available. Open your precision driver kit and confirm you have a small Phillips bit and a compatible security bit ready. Place screws in a labeled tray as you remove them to keep track of their positions.
Tip: Take a photo of screw positions before removing any parts to aid reassembly. - 2
Inspect the outer shell and locate screws
Carefully examine the case edges to identify the screw types and locations. If you see a Phillips head, prepare the corresponding bit; if there is a tri-wing or security screw, switch to the appropriate bit. Do not force the case open; confirm there are no hidden screws that may require a different approach.
Tip: Work slowly; misidentifying a screw type is a common source of damage. - 3
Choose the correct bits and test fit
Attach the smallest compatible bit to the driver and test its fit on a screw head. Ensure the bit sits fully seated and turns without slipping. If the bit won’t engage, re-check the screw type and try the other candidate bit.
Tip: A small amount of magnetic hold helps keep screws steady while testing fit. - 4
Loosen and remove screws methodically
Loosen screws in a cross or diagonal pattern to evenly relieve tension on the shell. Place each screw into its labeled tray section. Stop if you encounter resistance and reassess which screws belong to that opening.
Tip: Keep a steady hand and avoid applying torque to delicate plastic areas. - 5
Open the case and inspect internals
Gently separate the shell halves, supporting the internal boards as you rise. Check for any ribbon cables or connectors that may require extra care before fully separating. If you see resistance, pause and verify no additional screws or clips remain.
Tip: Support the PCB to prevent flexing; avoid pulling connectors with force. - 6
Reassemble and test functionality
Reinsert components in reverse order of removal, ensuring connectors seat fully. Replace screws in their original locations with light, even torque. Power the unit and confirm display output and speaker activity before finalizing closure.
Tip: Run a quick power-on test before sealing to catch any loose connections early.
Quick Answers
What if I can't identify the screwdriver type for my GameCube model?
Check the console model and regional variant; many GameCube variants use tri-wing or Phillips screws. If unsure, use a universal precision bit set and try the most common types gently. Do not force any screw.
If you’re unsure which screwdriver to use, check your model first; tri-wing and Phillips are the most common. Start with the Phillips, then test a tri-wing if needed.
Does opening my GameCube affect warranty?
Opening the console typically voids any existing warranty with the manufacturer. If warranty status is unknown, contact support before proceeding. Document any work you perform for future reference.
Opening the console can void the warranty, so confirm status with the seller if needed.
Can I use a regular screwdriver for GameCube openings?
Using a standard, non-precision screwdriver increases the risk of stripping screws or damaging plastic. Always use a small Phillips or security bit appropriate for the screw head.
A regular screwdriver isn’t recommended—use a precision set with the correct bits.
How do I tell if a screw is stripped?
If the bit slips under torque or the screw head looks damaged, it’s likely stripped. Stop and try a fresh bit fit or a rubber-band grip technique before forcing it.
If the bit slips or the head looks damaged, it’s probably stripped; stop and reassess.
Do I need to remove the motherboard to open the case?
Most openings require only shell removal; removing the motherboard is usually unnecessary for basic access. If you encounter unusual resistance, re-check screw locations and model-specific guides.
Usually you don’t need to remove the motherboard; check model guides first.
What should I absolutely avoid when opening GameCube?
Avoid forcing parts, using inappropriate bits, and touching the motherboard with bare hands. Also prevent static buildup and never use metal tools that could short components.
Avoid forcing, use the right bits, and protect against static electricity.
What tools help most when reassembling?
Keep a magnetic tray, a small brush for dust, and a flashlight to inspect connectors. Photograph steps during teardown to simplify reassembly.
Have a tray, brush, and a camera handy to document the process.
If a screw is stubborn, what should I do?
Back off slightly and switch to a matching bit, ensuring full engagement. Apply gentle, steady torque rather than forcing it.
Back off, switch bits if needed, and apply steady torque.
Watch Video
The Essentials
- Identify screw types before starting.
- Use the correct precision bits to avoid damage.
- Organize screws by location and label as you go.
- Test power and connections after reassembly.
