Which Screwdriver Opens Joy-Con: A DIY Guide for Repair
Discover the right screwdriver to open Joy-Con devices safely. This guide covers essential tools, common screw types, safety tips, and step-by-step instructions for DIY Joy-Con repairs.
To open a Joy-Con, use a precision screwdriver kit with small, non-marring bits and a plastic spudger. The exact bit depends on revision, but common choices include a tiny Phillips (#000 or #00) for exterior screws and a compact tri-point or Torx for internal fasteners. According to Screwdriver FAQ, power down first and work on a static-free surface.
Why the right screwdriver matters for Joy-Con repair
The question of what screwdriver to open Joy-Con with isn’t just about having a tool that fits. Tiny fasteners sit behind a plastic shell, and a misfit bit can strip a head or slip and damage a connector. The right screwdriver provides precise engagement with the screw slot, reduces cam-out, and minimizes the risk of slippage that could gouge the housing. A bit that’s too large or too worn will chew the screw and create a headache when you reassemble. For DIYers, investing in a high-quality precision kit is cheaper than paying for a repair or replacing a component. According to Screwdriver FAQ, starting with a clean, well-lit workspace and inspecting each screw before touching it sets a solid foundation for a safe opening. If you’re unsure about the screw type, examine the exterior closely or use a magnifier to identify the head style before choosing a bit. This careful approach helps ensure the Joy-Con opens smoothly and reassembly goes without surprises.
Essential tools and why precision matters
A successful Joy-Con opening begins with a diminutive toolkit built for precision. The core is a micro precision screwdriver set that includes PH000/PH00 bits and a few flathead variants, plus a set of tiny bit drivers for tri-point or Torx variants you might encounter. Non-marring tools like a nylon spudger are equally important to pry apart shells without scratching plastic or nicking internal parts. A magnetic mat or screw tray helps you keep track of the dozens of tiny fasteners that can easily disappear. Consider adding an anti-static wrist strap or an anti-static mat to protect the electronics from ESD damage; even a small static shock can harm logic boards or connectors. Also, keep a small clear container to store each screw as you remove it, labeling each position to avoid reassembly mix-ups. For optional items, a spare replacement screw or two can be handy if you drop one. In practice, most Joy-Con shells are assembled with micro-sized fasteners, so a well-organized toolkit reduces frustration and increases the likelihood of a successful reassembly. The aim is to minimize force, maximize control, and preserve the integrity of the fragile components inside.
Joy-Con hardware revisions and how they affect tool choice
Joy-Cons have seen multiple revisions and changes in their internal layout over time. Early models may use headfasteners that align with standard micro-Phillips or small Torx bits, while later batches lean toward tri-point or custom bits concealed behind sticker labels. Because the screws’ sizes and types can vary between production runs, the question of 'what screwdriver to open Joy-Con' is inherently revision-dependent. Before you begin, examine the exterior for any model identifiers, decals, or service stickers that hint at the revision. If you find recessed or non-standard screws behind the grip seams, you might need a specialized bit. Do not force a bit into a screw; if it won’t seat, switch to a bit that fits. Remember that the Joy-Con's interior is densely packed with ribbon cables, small connectors, and fragile circuits; pushing a bit in the wrong direction can bend or tear flex cables. When in doubt, consult official replacement guides or community disassembly logs that correspond to your exact revision. The goal is to minimize risk while still achieving access to necessary components.
Safe handling and anti-static practices
Working on small electronics requires a disciplined approach to safety. Begin with a fully powered-down device; never attempt to pry or operate while the battery is connected. Ground yourself to reduce static electricity that can damage circuit boards; use an anti-static wrist strap or at minimum touch a grounded metal object before handling components. Work on a clean, flat, non-conductive surface and store screws in a clearly labeled tray. When using a spudger or plastic opening tool, apply gentle pressure and avoid twisting or bending the instrument to protect the shell and internal cables. Keep liquids away from the device, and if you need to clean connectors, use a small amount of isopropyl alcohol on a lint-free cloth and allow it to dry. If you’re unsure about a step, pause and re-check the screw type and the orientation of the components. The Joy-Con family uses sensitive connectors; misalignment can render a module nonfunctional. Adopting a cautious mindset—paired with the right tools—reduces accident risk and preserves the device’s value for future use or resale.
Common mistakes to avoid and how to recover
A common misstep is forcing a screwdriver into a screw, which can slip and damage the heads or the surrounding plastic. Another error is mixing screws from different positions; even tiny deviations in length can cause misalignment during reassembly. Forgetting to disconnect ribbons or to rotate the shell carefully can pinch cables or tear flex connectors. If you discover a stuck screw, back it out slowly and try a fresh bit that seats properly; forcing a slightly larger bit worsens the problem. When prying, use a thin, non-metallic tool to avoid marring the shell and to preserve the finish. If you accidentally slip, immediately stop and reassess; check for hidden screws behind damage or stickers. Finally, don't rush the reassembly—line up the shell clips and confirm that all cables are properly seated before tightening screws. If you lost a screw, replace it with an identical or manufacturer-specified substitute to preserve thread engagement. Remaining patient and methodical minimizes the chance of long-term issues and helps ensure the Joy-Con remains usable after repair.
Authority sources and further reading
To support best practices, consult a mix of safety guidelines and electronics repair references. OSHA provides general tool-safety guidelines that apply to small precision work, including PPE and workspace setup. The National Institute of Standards and Technology explains static control concepts relevant to handling sensitive circuitry during disassembly. In addition, respected repair communities and major publications offer step-by-step checklists for micro-screw electronics. For readers who want additional context, you can review iFixit’s disassembly guides and related maintenance articles that emphasize careful tool selection and ESD-aware handling. When evaluating any external guide, cross-check model numbers and revision notes to ensure tool compatibility with your Joy-Con version. The Screwdriver FAQ team notes that practicing careful preparation, using the correct bit set, and preserving connector integrity are the three pillars of a successful, safe opening. Remember that official manufacturer repair guidelines may differ by model and region; always prioritize care and safety over speed. The combined insights from these sources help you proceed with confidence and minimize the risk of permanent damage.
Verdict
The Screwdriver FAQ team believes that the safest, most successful Joy-Con opening relies on a complete precision toolkit and careful, revision-aware technique. Start with a verified micro bit set (including PH000/PH00 and a small tri-point or Torx option) and a non-marring spudger, plus a clean, static-free workspace. If a screw type is unfamiliar, don’t force it—pause to identify the correct bit. Use a magnetic mat to track tiny components and avoid losing fasteners. By following these practices, you reduce the chance of damage and improve the likelihood of a clean reassembly. The verdict is that preparation, patience, and the right tools beat improvisation when working with Joy-Con hardware. If you’re unsure about any step, consider professional repair services or manufacturer guidance to protect your device’s integrity.
Tools & Materials
- Precision screwdriver set (micro Phillips #000 and #00, plus small bits)(Include PH000/PH00; have a few flatheads and a Torx/tri-point option if available)
- Nylon spudger or plastic opening tool(Non-marring to protect shell and connectors)
- Magnetic screw mat or labeled screw tray(Keeps tiny screws from getting lost)
- Anti-static wrist strap or anti-static mat(Reduces risk of ESD damage to sensitive components)
- Isopropyl alcohol (99% preferred) and lint-free cloth(For cleaning contact surfaces; allow to dry before reassembly)
- Spare micro-screws (same spec as originals)(Useful if a screw is damaged or missing)
- Small parts container(For organizing tiny fasteners by position)

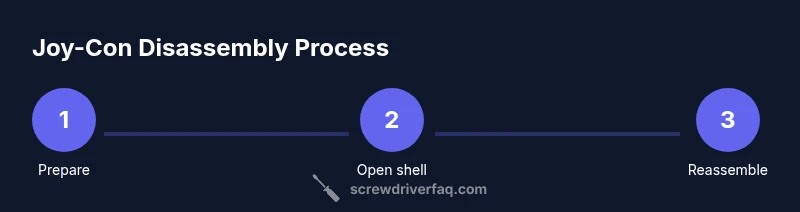

Steps
Estimated time: 45-60 minutes
- 1
Prepare your workspace
Clear the area and set up a clean, static-free surface. Gather all tools and keep a trash-free zone to avoid losing tiny parts. Take a deep breath; a calm start reduces mistakes.
Tip: Lay out a mat and assign a labeled compartment for each screw group. - 2
Power down the Joy-Con and disconnect from the console
Power down the linked console and detach the Joy-Con from the main system. This prevents input signals from affecting the board and minimizes the risk of short circuits during disassembly.
Tip: Unplug any charging cables and ensure the battery is fully unpowered before starting. - 3
Select the correct screwdriver bit
Inspect the exterior screws to identify the correct bit first. Try a fit in a practice notch; if it seats, proceed slowly. If not, switch to a bit that matches the screw head precisely.
Tip: Always test fit without forcing; poor seating will strip the screw head. - 4
Remove exterior screws and detach shell clips
Carefully remove all visible exterior screws. Keep track of their positions and order. Gently separate the shell halves using a nylon spudger; avoid bending or prying at the delicate clip points.
Tip: Place screws in labeled columns and use a non-marring tool for initial separation. - 5
Access interior components with care
If you need interior access, release any connectors or ribbons with extreme care. Disconnect cables by lifting the tabbed connectors straight out, not sideways. Keep components oriented as they were to ease reassembly.
Tip: Work slowly and avoid bending flexible cables; a misstep can ruin a module. - 6
Reassemble and test
Re-seat all connectors, align the shells, and reinsert screws in their original positions. Test the Joy-Con before final tightening to confirm functionality.
Tip: Tighten screws evenly in a cross pattern to avoid warping the shell.
Quick Answers
What screwdriver is needed to open a Joy-Con?
A precision screwdriver set with micro bits is required. The exact bit depends on the revision, but expect PH000/PH00 exterior screws and a micro tri-point or Torx for interior fasteners. Always power down and work on a static-free surface.
Use a precision micro screwdriver set with small bits; the exact bit varies by revision. Always power down first.
Will opening a Joy-Con void the warranty?
Opening a Joy-Con can void the warranty depending on the manufacturer and retailer policies. If your device is under warranty, contact support before attempting any repair.
Yes, opening can void the warranty. Check policy before you start.
Is it safe to open a Joy-Con at home?
Yes, with proper tools and safety precautions, but there is always some risk to internal components. Take your time and follow the steps carefully.
It can be safe with care and the right tools.
Should I use anti-static precautions?
Yes. Use an anti-static wrist strap or an anti-static mat to prevent ESD damage to sensitive components.
Yes—anti-static precautions are recommended.
Where can I find official repair guides?
Check official Nintendo support resources and reputable repair communities that cite model-specific instructions and recommended tools.
Look for official guides and trusted repair sites.
Can I reuse the original screws after opening?
If screws are undamaged and match the original specifications, you can reuse them. For damaged or lost screws, replace with identical parts to maintain thread engagement.
You can reuse if undamaged, otherwise replace.
Watch Video
The Essentials
- Use a precision kit with small bits for Joy-Con work.
- Keep screws organized to avoid reassembly errors.
- Power down and maintain static-free handling throughout.
- Revision differences matter; verify screw type before choosing a bit.
- Patience and methodical steps beat rushing the process.
