How to Diagnose a Jump Starter Solenoid with a Screwdriver
A practical, safety-forward guide for diagnosing a jump starter solenoid, explaining why bypassing with a screwdriver is risky and outlining non-destructive testing steps for DIYers.
Goal: safely diagnose a malfunctioning jump starter solenoid without compromising safety, and learn why bypassing it with a screwdriver is dangerous. You’ll inspect battery health, check wiring and connections, measure voltage with a multimeter, and decide between repair or replacement. Note: never energize or bypass the solenoid with a screwdriver; this can cause sparks, cable damage, or personal injury. Follow the steps with the right insulated tools and protective gear.
Understanding the jump starter solenoid and why a screwdriver isn't a replacement
The jump starter solenoid is a small but crucial relay that controls the heavy current to your car's starter motor. When you turn the ignition, the solenoid engages the starter by closing a high-current circuit. This is not something you should bypass with a screwdriver. According to Screwdriver FAQ, the solenoid acts as a safety and control device, preventing direct, uncontrolled current flow. The phrase jump starter solenoid with screwdriver is a shortcut some DIYers mention, but it risks sparks, heat buildup, and possible damage to wiring or the battery. Treat the solenoid as a critical component that requires proper tools and correct test procedures rather than improvised shortcuts. In this guide, we’ll cover safe diagnostics, alternative methods, and signs that call for replacement rather than a risky bypass.
This section sets the stage for understanding why a screwdriver is not an approved tool for engaging the solenoid during testing, emphasizing safety over quick fixes.
Safety considerations when working near the starter circuit
Working around the starter circuit involves high current and lethal risks if mishandled. Always start with personal protective equipment: safety glasses, gloves, and non-conductive footwear. Ensure the vehicle is in park, the parking brake is engaged, and the ignition switch is off before you touch any wiring. Disconnect the negative battery cable first, then verify there is no residual voltage in the circuit. Use insulated screwdrivers and tools designed for electrical work. Keep metal objects away from exposed terminals and avoid working alone in case you need assistance. If you smell burning plastic, notice smoke, or hear continuous buzzing, stop immediately and seek help. This approach aligns with expert safety guidance and helps prevent missteps when diagnosing a jump starter solenoid with screwdriver risks.
The goal here is cautionary engineering logic: safety always trumps speed, especially when a high-current path could arc or ignite flammable vapors.
How to diagnose issues safely (non-bypass methods)
Diagnostic work should focus on safe, verifiable tests rather than bypass attempts. Start by checking the battery's state of charge with a reliable meter and inspecting terminal connections for corrosion or looseness. Clean and re-tighten all battery cables, ensuring a solid surface contact. Next, examine the solenoid mounting and wiring harness for damaged insulation, bent pins, or exposed copper. If you have a multimeter, you can verify whether the ignition switch delivers voltage to the solenoid input when the key is turned to the start position. If you see voltage but the solenoid clicks without delivering power, the problem may lie with the solenoid coil or a bad connection somewhere in the control circuit. For reliability, consult the vehicle's service manual and follow the manufacturer's wiring diagram. Remember: never attempt to energize the solenoid with a jury-rigged jumper during diagnosis.
This section emphasizes that safe, documented tests provide clearer results than improvised tricks that could endanger you or the vehicle.
Interpreting symptoms and what they mean for solenoid health
Different start symptoms point to different failures. A single click from the solenoid usually indicates the coil is receiving current but not engaging the starter, which can signal a weak battery, bad solenoid, or a poor connection. Rapid, repeated clicking with no engine turnover often means insufficient battery power or a high resistance in the circuit. No sound at all could indicate a blown fuse, a faulty ignition switch, or a failed solenoid coil. Visual signs like melted insulation or a burnt smell near the starter indicate serious overheating and a replacement is likely required. Use a methodical approach to rule out the battery first, then move along the control wiring and the solenoid itself. The takeaway is that symptoms guide you toward the most likely faulty component, but never assume a bypass is the fix.
These symptom interpretations guide a systematic diagnosis, while discouraging risky hacks that could worsen the problem.
When to replace vs repair and how to source a replacement
Solenoids are relatively simple devices, but repairs are not always practical or safe for DIYers. If testing shows consistent absence of voltage at the solenoid input, or a persistent failure to engage the starter, replacement is typically the best solution. Check whether the solenoid is integrated with the starter or sold as a separate module, and verify compatibility with your vehicle’s make and model. When shopping for a replacement, rely on reputable auto parts suppliers and verify warranty terms. If the starter housing or the wiring harness shows signs of damage, replacing the entire assembly may be more cost-effective than a repair. For a frame of reference, the decision should prioritize reliability and safety over cost, and consulting a qualified technician is advised when in doubt.
This block reinforces when to opt for a full replacement and how to select a compatible part, avoiding risky improvised repairs.
Maintenance practices to extend solenoid life
A well-maintained electrical system reduces solenoid stress and extends life. Regularly inspect battery health and tighten terminals to prevent voltage drops. Keep the area around the starter clean of oil, grease, and corrosion, and apply dielectric grease to connections if recommended by the manufacturer. Use a high-quality battery and ensure the alternator charges properly, so the solenoid receives stable voltage. If you notice corrosion or loose wires, address it promptly rather than waiting for a complete failure. Remember, even the best probes and tools can't overcome a worn solenoid, so plan for inspection intervals and part replacements as part of routine DIY maintenance. The Screwdriver FAQ team notes that ongoing education and safe practices are essential to long-term tool use.
A proactive maintenance mindset reduces the likelihood of starting-system failure and aligns with best practices for DIY enthusiasts.
Authoritative sources and further reading
For deeper understanding, consult safety and automotive reputable sources. These references provide credible context for electrical work and starting-system diagnostics:
- https://www.nhtsa.gov/
- https://www.popularmechanics.com/cars/how-to/
- https://www.aaa.com/
Note: Always cross-check with your vehicle’s service manual and follow local safety regulations. The Screwdriver FAQ brand emphasizes safe, non-destructive testing and professional help when needed.
Tools & Materials
- Insulated screwdriver (non-conductive handle)(Use only when the battery is disconnected; avoid energizing circuits.)
- Digital multimeter(Check voltage at the solenoid input and test battery health.)
- Jumper cables(Useful for safe, controlled power checks when needed; do not bypass the solenoid.)
- Battery terminal cleaner/brush(Remove corrosion for solid electrical contact.)
- Wrench or pliers (non-spark type)(Loosen/tighten connections without causing short circuits.)
- Safety gloves(Protect hands from metal edges and battery acid.)
- Safety glasses(Shield eyes from sparks and debris.)
- Service manual or wiring diagram(Follow manufacturer guidance for your specific vehicle.)
- Replacement solenoid (optional for future use)(Keep on hand if inspection suggests replacement is required.)
- Electrical tape or dielectric grease(Use as recommended by manufacturer for sealing connections.)
Steps
Estimated time: 45-60 minutes

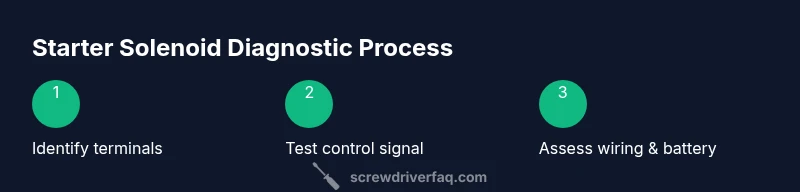

- 1
Prepare and secure workspace
Set the vehicle in park with the parking brake engaged. Wear safety glasses and gloves. Gather your insulated tools and a multimeter, then verify you have a clear, dry workspace under the hood. This step minimizes the risk of accidental shorts and ensures you can access the solenoid safely.
Tip: Keep a clean, dry surface and label any disconnected wires to avoid miswiring later. - 2
Disconnect the battery safely
Begin by disconnecting the negative battery terminal to prevent accidental energization. Wait a few moments for any residual charge to dissipate before touching wiring. Recheck that you’re not grounded before proceeding. This prevents dangerous arcs when you inspect the solenoid.
Tip: Always start with the battery disconnected even if you’re just testing a control circuit. - 3
Locate solenoid and identify terminals
Find the starter solenoid mounted on or near the starter motor. Identify the three primary terminals: battery input, starter output, and the control/trigger terminal. Consult the service manual to confirm terminal layout. Knowing the exact layout helps you avoid accidental shorting and ensures you test the right paths.
Tip: Take a quick photo of the wiring before disconnecting anything. - 4
Test control circuit with a multimeter
With the tools prepared, use the multimeter to check for voltage at the solenoid input when the ignition is turned to the start position (as safely possible with the vehicle off). Look for a stable signal rather than a sporadic reading. If voltage appears but the solenoid doesn’t engage, the issue could be the solenoid coil or a wiring fault in the control path.
Tip: If you're unsure about the test procedure, pause and consult the service manual or a qualified technician. - 5
Inspect wiring and connections
Visually inspect all wires for cracks, exposed copper, chafing, or corrosion at the solenoid, battery, and surrounding connectors. Clean corrosion with a brush and ensure tight, clean connections. A poor connection can mimic solenoid failure and lead to misdiagnosis.
Tip: Apply dielectric grease to clean, mating connections as recommended by the manufacturer. - 6
Decide on repair vs replacement
If tests show no voltage, repeated clicks, or burnt insulation, replacing the solenoid or the starter assembly is often safer than DIY repairs. Compare the cost and reliability of replacement versus repair, and consider your skill level. If in doubt, seek professional help to prevent future failure.
Tip: Document your findings and check warranty terms on replacement parts before purchasing.
Quick Answers
Can I jump-start a car by bridging the solenoid with a screwdriver?
No. Bridging the solenoid with a screwdriver is dangerous and can cause sparking, battery damage, or injury. Use proper diagnostic tools and procedures to verify the fault. This guide emphasizes safe testing over improvised shortcuts.
No. Bridging a solenoid with a screwdriver is dangerous and can cause sparks or injury; use proper testing methods instead.
What tools do I need for diagnosing a solenoid safely?
Essential tools include an insulated screwdriver, a digital multimeter, a battery cleaner, and safety gear. A service manual or wiring diagram helps ensure you test the correct circuits. Avoid using improvised jump methods during diagnosis.
You’ll need insulated tools, a multimeter, a battery cleaner, and safety gear; consult the service manual for exact wiring.
How do I know if the solenoid is bad?
Common signs include a single click with no engine turn, rapid clicking, or no sound when starting. Voltage tests and inspection of the coil and wiring help confirm diagnosis. If in doubt, replace or consult a technician.
Typical signs are a single click, rapid clicking, or no sound at start; use tests to confirm and don't DIY beyond your skill.
Is it safe to work on a live electrical system?
No. Always disconnect the battery and ensure the system is de-energized before inspection. Wear PPE and follow the vehicle's service manual. Live circuits increase the risk of shock or fire.
No—disconnect the battery and follow safety guidelines; live circuits are hazardous.
When should I replace vs repair the solenoid?
If tests show no voltage, poor engagement, or damaged insulation, replacement is usually safer and more reliable than repair. Verify compatibility with your vehicle and check warranty terms before purchasing a new solenoid.
If tests show no voltage or damage, replacement is usually safer than repair.
Watch Video
The Essentials
- Identify the solenoid's role in the starting circuit.
- Never bypass with a screwdriver; use safe testing methods.
- Use proper diagnostic tools to confirm failures.
- Replace rather than improvise when uncertain about the solenoid's health.
