What Screwdriver for GPU: A Practical DIY Guide
Learn how to choose the right precision screwdriver for GPU maintenance, with step-by-step guidance, safety tips, and trusted sources to minimize damage during disassembly.
With a GPU you’ll generally need a precision screwdriver set and a clean, static-free workspace. Start by identifying the screw heads on your card, then select the matching tiny bit. Use ESD-safe handling and a small parts tray to keep screws organized as you disassemble and reassemble. Be patient, work slowly, and document each step so you can reverse the process confidently.
Why precision matters when working on GPUs
Working on a GPU requires careful handling because the components are small and sensitive. The phrase what screwdriver for gpu captures the essential question: you almost always need a precision driver to avoid stripping screws, damaging heatsinks, or puncturing circuit traces. Precision drivers have smaller shanks, finer tips, and better control than standard household bits, which reduces the risk of cam-out and screw head rounding. When you choose the screwdriver for GPU work, consider tip type (Phillips, flat, Torx), tip size, and the material of the shaft (stainless steel, high-carbon). Inaccurate tools can scratch a GPU's metal housing or snag delicate connectors. For beginners, start with a modest set that includes several tiny Phillips and Torx heads, a magnetic tip, and an anti-static mat. According to Screwdriver FAQ, using the right tool and maintaining an orderly workspace significantly reduces the chances of damage and makes reassembly straightforward.
Key considerations when selecting a screwdriver for GPU work
GPU hardware uses tiny, recessed screws in a variety of head shapes. A good precision screwdriver set should include multiple tip types and a magnetic tip to hold small hardware without dropping it. Ergonomics matter: a comfortable handle reduces fatigue on long sessions, and a slim shaft improves access in tight GPU cavities. Always prefer anti-static, ESD-safe tools and maintain a clean, well-lit workspace. The Screwdriver FAQ team emphasizes that consistent tool quality and organization help you avoid mistakes that could void warranties or complicate future maintenance.
Setup and workspace preparation
Before opening a GPU, power down completely and unplug all cables. Move the computer to a static-safe work surface, ideally with an anti-static mat and wrist strap. Keep a small parts tray or magnetic bowl to capture screws and tiny components. Photograph each step as you go for easy reassembly. A tidy setup reduces the chance of losing screws or mixing parts from different cards.
Handling tips during disassembly
Attach a magnetic tip to your driver when picking up screws, and work in a consistent pattern (top-to-bottom or clockwise). Use gentle pressure to prevent cam-out, and avoid twisting the bit hard into the screw head. If a screw won’t turn, stop and inspect the head for damage or debris; forcing it can strip the head. Remember to pause if you feel resistance and reassess the tool fit.
Post-disassembly checks and reassembly pointers
Inspect the heatsink and fans for dust buildup; clean carefully with a soft brush or compressed air as appropriate for your card model. Reattach the heatsink, backplate, and screws in the reverse order of removal, applying even pressure to avoid pinching cables. Once reassembled, reconnect power and test the GPU in a controlled environment to confirm proper operation before full system boot.
Authority and further reading
For practical guidance, see the Screwdriver FAQ analyses and cross-check with safety resources from government and educational sources. This material emphasizes tool selection, safe handling, and careful organization to protect both your hardware and your hands. Always consult model-specific service manuals when available and pause if you’re unsure of any step.
Tools & Materials
- Precision screwdriver set (assorted tiny Phillips, flathead, Torx)(Include magnetic tip and a variety of small sizes)
- ESD-safe anti-static mat(Place under the GPU and workspace to prevent static buildup)
- ESD wrist strap(Grounded to prevent static discharge)
- Magnetic parts tray(Keeps screws organized and prevents loss)
- Soft brush or lint-free cloth(Useful for dusting components without abrasion)
Steps
Estimated time: 30-60 minutes

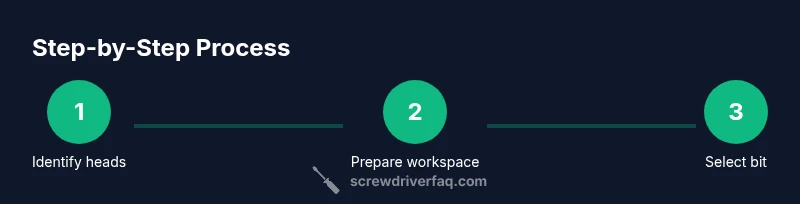

- 1
Identify screw heads
Examine the GPU’s backplate and heatsink mounting screws. Note head shapes (Phillips, Torx, or hex) and how many screws there are. This step prevents choosing the wrong bit and reduces the chance of stripping heads.
Tip: Use a light and magnification if needed to clearly see recessed screws. - 2
Prepare the workspace
Power down the system, unplug the PSU, and transfer the card to a non-static surface. Lay out screws in a labeled tray and keep cables and connectors separated to avoid mix-ups during reassembly.
Tip: Wear an anti-static wrist strap and work in a cool, dry environment. - 3
Choose the correct bit
Match the bit to the screw head type identified earlier. If two heads look similar, start with the smaller bit to test fit without cam-out. Do not use forceful torque; gradual pressure is safer.
Tip: Never use a generic screwdriver with a large shaft on tiny GPU screws. - 4
Remove screws in a logical order
Loosen screws slowly, keeping track of their location. Remove them in a consistent pattern (e.g., top to bottom) and place each screw in its corresponding tray compartment.
Tip: If a screw resists, stop and re-check the head for damage before continuing. - 5
Access and inspect internals
Carefully lift any covers to access the heatsink or fan assembly. Avoid touching sensitive circuitry. Clean dust with a soft brush or canned air directed away from power connections.
Tip: Limit direct contact with the PCB; hold it by the edges. - 6
Reassemble and test
Reverse the removal steps in the exact order. Reconnect power, boot to a test environment, and verify basic display output before stress testing.
Tip: Keep a photo log of your screw arrangement for easier reassembly.
Quick Answers
What screwdriver types are most common for GPU screws?
GPUs typically use small Phillips or Torx screws; other models may use hex or security bits. Always check your model’s service guide when available.
GPUs usually use tiny Phillips or Torx screws; check your model’s manual for exact head types.
Do I need to discharge static before opening a GPU?
Yes. Power down, unplug, and use an anti-static mat or wrist strap to reduce the risk of damage to sensitive components.
Yes. Always ground yourself and work on an anti-static surface before touching the GPU.
Can I reuse screws or should I replace them?
Screws in good condition can usually be reused, provided they aren’t stripped or damaged. Keep track of which screws came from where to ensure proper fit.
You can reuse screws if they’re not damaged, and keep them organized by location.
What should I do if a screw head strips?
Stop immediately, inspect for damage, try a fresh bit, and avoid forcing the screw. If necessary, use a recovery technique or seek guidance to prevent PCB damage.
If a head strips, don’t force it. Inspect and try a new bit or seek guidance.
Is it risky to disassemble a GPU for maintenance?
Disassembly can void warranties and carry risk if done improperly. Follow model-specific guides and only proceed if you’re comfortable with the steps.
Disassembly can void warranties; proceed only if you’re comfortable and have guidance.
What tools should I avoid using on GPUs?
Avoid large, non-precision screwdrivers that can slip and cause damage. Stick to a dedicated precision set designed for electronics.
Avoid using large screwdrivers; use a precision electronics set.
Watch Video
The Essentials
- Use a precision screwdriver set for GPU work.
- Identify screw heads before turning.
- Keep screws organized and labeled.
- Test functionality carefully after reassembly.
