How to Use a Screwdriver Drill: A Complete DIY Guide
Master the art of using a screwdriver drill with safe techniques, proper bit selection, torque settings, and maintenance tips for confident DIY projects.
How to use a screwdriver drill safely and effectively. In brief: start by selecting the correct bit, set the torque and speed to match your material, and maintain steady pressure as you drive or pilot drill. According to Screwdriver FAQ, practice on scrap material first to build control and prevent cam-out.
Why a Screwdriver Drill Is a Versatile Tool
A screwdriver drill combines the best of two worlds: the precision control of a hand screwdriver and the power of a drill. For many DIY projects, this tool handles driving screws, drilling pilot holes, and even light material work with the right bit. The key to getting consistent results is understanding how bit type, clutch settings, and speed interact with material. The Screwdriver FAQ team emphasizes that beginners often underestimate the value of a properly matched bit and controlled torque. When you choose the right bit for wood, metal, or plastic, and set the clutch to the correct level, you reduce cam-out, strip-outs, and the risk of splitting delicate workpieces. Learning to anticipate how different materials respond to drilling will save you time and frustration across projects like furniture assembly, cabinet installation, or simple home repairs.
Safety Basics Before You Start
Safety is the foundation of any drill-and-drive task. Always wear eye protection, keep your hands clear of the chuck, and secure your workpiece with clamps or a sturdy vise. Check the battery or power cord for damage, and ensure the chuck is open enough to accept the bit without forcing it. If you’re working overhead, use a stable platform and have a second pair of hands on standby. The Screwdriver FAQ analysis shows that most accidents happen when users rush or brace themselves awkwardly. Take a moment to clean the workspace, remove trip hazards, and plan your route of motion before you begin. Remember: a loose drill can slip and cause injuries or damage.
Choosing the Right Bit and Settings

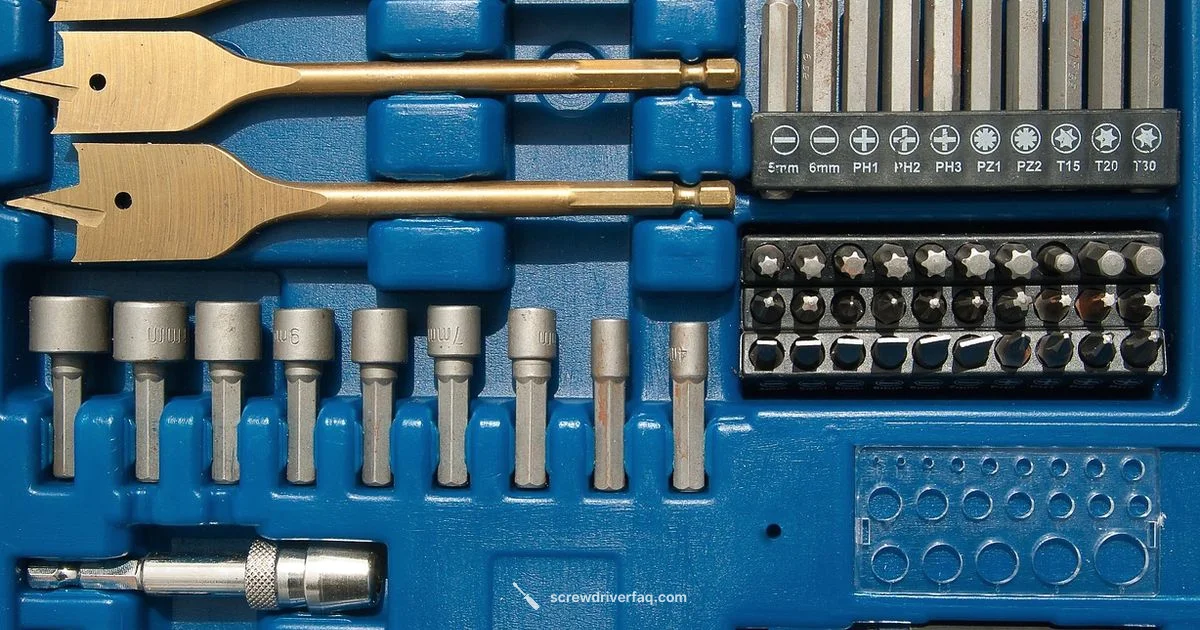

Bits come in a range of shapes and sizes. For most household screws, a Phillips #2 or a slotted bit will do the job; hex and Torx bits cover specialized fasteners. Use a bit with a sturdy shank and a shaft long enough to reach the screw without wobble. Pair the bit with the appropriate torque setting and speed. For softwoods, a lower torque helps prevent cam-out; for hardwoods or dense plastics, increase torque slightly but keep the speed controlled. Keep a spare bit set available so you don’t pause mid-project to hunt for a new bit. The goal is to keep the bit perpendicular to the surface to ensure a clean driving path and avoid cam-out or slipping.
Step-by-Step Use for Driving Screws with a Screwdriver Drill
Below is a practical approach to driving screws efficiently and safely. Remember to practice on scrap material first to calibrate your technique for the specific fastener and material you’re using. First, mount the correct bit in the chuck and lightly snug it; do not overtighten. Next, adjust the clutch or torque to the recommended setting for the material and screw size. Hold your drill steady, position the screw perpendicular to the workpiece, and start at a slow speed to seat the screw without stripping. If the screw resists, stop and check alignment, then resume with controlled pressure. Finish by backing out slightly and re-driving if needed for a flush or countersunk finish. Finally, unplug or switch off the tool when adjusting bits or clearing jams, and wipe away dust to inspect the hole.
Tips for Tricky Materials and Pilots
Different materials demand different approaches. For wood, use pilot holes for large screws or hardwoods to prevent splitting. For particleboard or plywood, pilot holes should be slightly larger than the screw’s diameter. In metal, use a drill bit designed for metal and lubricate lightly to reduce heat. If you notice the bit binding or smoking, stop, back out, and reassess drill speed and pressure. Clamps help control vibration, improve accuracy, and protect you from kickback. Always start with a slower speed when crossing materials or encountering dense sections.
Maintenance and Storage
After a project, remove the bit from the chuck and clean the screw debris from the drill head. Wipe down the exterior to prevent rust and inspect the chuck for wear. Keep batteries charged and stored at moderate temperatures away from moisture. Store bits in a labeled case so you can quickly locate Phillips, flathead, Torx, and hex types. Periodically lubricate the chuck if your model requires it and replace worn or damaged bits to maintain cutting efficiency and reduce the risk of damage to screws or workpieces.
Tools & Materials
- Cordless screwdriver drill (with charged battery)(Ensure battery is charged; model should support common screwdriver bits.)
- Phillips head bit #2(Common for wood and sheet metal screws.)
- Flathead bit (slotted)(Useful for slotted screws and certain hardware.)
- Torx/Star bit set(Keep a small selection for specialty fasteners.)
- Hex/Allen bit set (1/4 inch)(Helpful for furniture hardware and some fasteners.)
- Assorted screwdriver bits set(Have a mix of sizes to cover common screws.)
- Pilot bit (for wood, 1/16–1/8 inch)(Optional but recommended for hardwood or larger screws.)
- Safety glasses(Protect eyes from debris.)
- Clamps or a vise(Secure workpiece to prevent movement.)
- Measuring tape or ruler(For marking pilot holes and depth.)

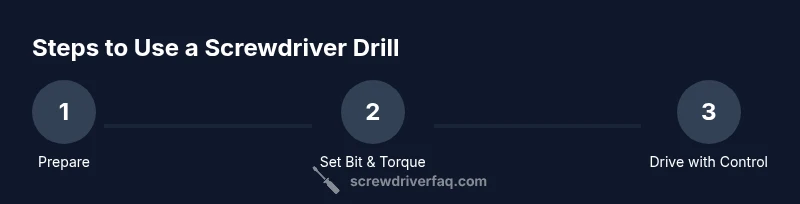

Steps
Estimated time: 25-40 minutes
- 1
Inspect and set up the drill
Check the drill’s battery, ensure the chuck opens wide enough for the bit, and mount the correct bit. Confirm the area is clean and the workpiece is clamped securely. This reduces slippage and increases accuracy.
Tip: Always test fit the bit on a scrap piece to confirm fit before touching the actual workpiece. - 2
Choose the bit and mark depth
Select the bit that matches the screw type and size. If depth control is important, mark a depth stop or use a piece of tape to indicate the desired depth on the screw shaft.
Tip: Use a depth stop or tape to prevent driving screws too deep. - 3
Set torque and speed
Set the torque/clutch to match wood or metal and choose a lower speed for driving; increase if you need to drill a pilot hole first. Avoid high torque on soft woods to reduce cam-out.
Tip: Start with the lowest effective torque and increase gradually if needed. - 4
Pilot hole if needed
When dealing with hardwoods or large screws, drill a pilot hole before driving to prevent splitting. The pilot hole should be smaller in diameter than the screw’s core.
Tip: A pilot hole reduces resistance and improves accuracy. - 5
Position and begin driving
Hold the drill perpendicular to the surface, start at a slow speed, and apply steady, even pressure. Let the bit do the work and avoid forcing the screw.
Tip: Keep the drill steady and parallel to the surface to avoid cam-out. - 6
Check depth and finish
Pause to check the screw depth, clean debris, and ensure the head is flush or countersunk as required. If not, back out slightly and re-drive at a controlled pace.
Tip: Work incrementally—don’t rush the process. - 7
Remove and store the bit
Once completed, retract the bit slowly, turn off the drill, and remove the bit. Return it to its case and inspect for wear.
Tip: Wipe the chuck area to remove dust before storage. - 8
Maintenance and safety check
Inspect the chuck for wear, test the battery’s charge, and review drill temperature after prolonged use. Replace worn bits promptly.
Tip: Regular maintenance prevents failures and prolongs tool life.
Quick Answers
What is the difference between a screwdriver drill and a standard drill?
A screwdriver drill is designed to drive screws with controlled torque and a clutch, often with lower RPM. A standard drill prioritizes material removal and higher speed for drilling. A drill/driver combines both functions, but the clutch helps prevent cam-out when driving screws.
A screwdriver drill focuses on driving screws with controlled torque, while a general drill is optimized for drilling. A drill/driver blends both capabilities, using a clutch to protect screws from stripping.
Can I use a regular drill to drive screws?
Yes, you can drive screws with a regular drill, provided you use the correct bit, set a low to medium torque, and maintain steady pressure. For larger screws or hardwoods, a dedicated screwdriver drill or a drill/driver with a clutch produces better results and reduces wear.
Yes, but a standard drill with the right bit and low torque will work; for tougher jobs, use a drill/driver with a clutch.
What settings should I use for hardwood versus softwood?
For hardwood, use a pilot hole and a lower torque setting to avoid stripping. For softwood, you can use a slightly higher torque but still drive slowly to prevent cam-out. Always test on a scrap piece first.
Hardwood needs lower torque and often a pilot hole; softwood tolerates a bit more torque but drive slowly.
Do I need pilot holes?
Pilot holes are recommended for hard woods and large screws to prevent splitting. In soft woods or with small screws, you may skip pilot holes but should run a test first and back off if you notice resistance.
Pilot holes prevent splitting in hard woods; test first in other cases.
How can I prevent cam-out when driving screws?
Use a bit that matches the screw head, set an appropriate clutch, and apply steady pressure straight into the surface. Starting at a slow speed and increasing gradually helps seat the screw without stripping.
Match the bit, use the clutch, and drive slowly with steady pressure to avoid cam-out.
Watch Video
The Essentials
- Choose the right bit and set appropriate torque.
- Clamp the workpiece and check alignment before driving.
- Practice on scrap material to build control and reduce cam-out.
- The Screwdriver FAQ team recommends safety-first and methodical practice.
