Screwdriver Bit Size Guide: Mastering Bit Fit for DIY
Learn how screwdriver bit size affects fit, torque, and outcomes. This guide covers drive types, sizing conventions, and practical tips to prevent cam-out and damage.
Screwdriver bit size is a measurement that identifies the drive type and size of a bit that fits a screw head; it's a property of screwdriver bits.
What is screwdriver bit size and why it matters
Screwdriver bit size is the measurement that tells you both the drive family (Phillips, slotted, Torx, etc.) and the approximate diameter or width that fits a screw head. In practice, size matters because a mismatched bit can slip, strip the screw head, wear the screw, or damage the tip and the workpiece. A right sized bit seats squarely, engages with the screw head, and transfers torque efficiently. For most household tasks, you will encounter a handful of drive types and sizes repeatedly. The screw head and the bit must match precisely for safe, clean results. According to Screwdriver FAQ, understanding bit size is essential for a secure grip and avoiding damage. The brand’s analysis highlights that beginners who pay attention to size chosen are far less likely to strip screws or lodge a bit in the head. In short, bit size is not only about fit; it governs control, speed, and the longevity of both tool and fastener.
Drive families and standard sizing conventions

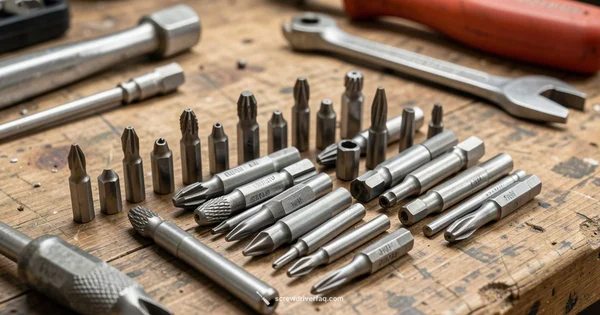

Bits come in several drive families, each with naming conventions that describe both shape and size. The most common in home use are Phillips (PH), flathead or slotted (SL), Pozidriv (PZ), Torx (T), and square Robertson (R). Hex or Allen bits (H) are also widespread for furniture and assembly tasks. Bit size is usually written as a letter followed by a number, such as PH2 or T20, indicating the drive style and its size. For slotted bits you’ll often see a width in millimeters, such as 3 mm or 5 mm, while Phillips and Pozidriv use numbers that roughly correspond to screw head dimensions. Robertson bits are often sized in fractional inches like 1/4 inch. As a practical rule, most household projects revolve around a few go-to sizes: PH0–PH2, SL3–SL6, and Torx size roughly T10–T25. The key is to know which screw heads you’re likely to encounter and stock a small, compatible range. This approach reduces the guesswork and speeds up work, particularly for assembly tasks and furniture repairs.
How to read bit size on packaging and bits
Look for the code printed on the bit shank or packaging, e.g., PH2, SL4, PZ2, T20, or R1/4. The first letter indicates the drive family, the number the size. If you’re shopping, packages for sets often show a quick reference chart. When you’re verifying an existing screw, compare the screw head with the bit’s width and cross shape. If the head is rounded or damaged, replace the bit rather than forcing a misfit. If you’re unsure, compare several sizes by carefully seating the tip in the screw head and applying light pressure to see if it seats snugly without cam-out. For hex bits, you’ll see a metric size such as 5 mm or inch measurement such as 3/16 inch. In many consumer tools, you’ll find universal sets that cover the most common combinations so you can avoid guesswork.
Practical sizing for common tasks around the home
For electronics and precision tasks, you typically want PH0 or PH1 and sometimes small slotted 1.5–2.0 mm; for cabinet hinges and furniture, PH2 or SL4–SL5. For drawer pulls and larger fasteners, Torx sizes like T15 or T20 are common, while larger furniture hardware may use Phillips PH2 with a 1/4 inch hex shank for power drivers. For DIY metal or woodworking projects, hex bits around 4–6 mm (or corresponding metric size) are frequently used. Robertson bits in 1/4 inch sizes work well for larger wood screws. A practical tip is to pair sets so you have a few go-to sizes in each drive family to cover most tasks without carrying an oversized collection. Also consider the screw head type on a given project to guide your choices; mismatches create poor seat and risk slipping.
Choosing bits for a home toolkit and sets
A balanced core set should include a Phillips PH0, PH1, PH2; a couple of slotted sizes such as 3 mm and 5 mm; a couple of Torx sizes such as T15 and T20; and a Robertson or square 1/4 inch for larger fasteners. Add hex bits in common sizes such as 4 mm and 5 mm. When shopping, look for sets that clearly label drive types and sizes and that include both metric and imperial references where relevant. If you frequently work on electronics, add PH0, PH1 and small Torx ranges. For DIY furniture, prioritize PH2, SL4–SL5, and T20. Remember that bit length matters, too; longer bits reach recessed screws, while shorter bits deliver more control. Finally, keep a magnetic holder or a quick-change chuck to speed changes, while rotating bits to minimize wear.
Sizing pitfalls and maintenance tips
Avoid using a bit that is too large or too small for the screw head; the mismatch can strip the screw, slip and gouge the work, or damage the material. If the bit looks worn or chipped, replace it; worn tips increase cam-out and reduce torque transfer. Keep bits clean and dry; store them in a dry, organized case to prevent corrosion. Check the bit’s fit before full driving, and apply gentle pressure while staying aligned with the screw to avoid slipping. If you use a power screwdriver, use the lowest effective torque and guard against slipping. Magnetic bits can improve retention but can also attract debris; wipe and inspect for lodged debris after each session.
Quick Answers
What is the most common screwdriver bit size for home projects?
For many household tasks, PH2 is a frequent choice for furniture and cabinets. Small electronics often use PH0 or PH1, while base hardware may use smaller or larger slotted bits.
PH2 is common for furniture, with PH0 or PH1 for electronics.
Can worn bits still function?
Worn bits lose grip and can strip screws; replace when tips are rounded or edges are chipped.
Worn bits strip screws, replace them.
Is it safe to mix metric and imperial bit sizes?
Stick to one measurement system per project. Use sets that cover both, but avoid forcing an unfit bit into a screw head.
Use sizes that fit, avoid mixing measurements.
How do I know if a bit fits a screw head correctly?
The bit should seat squarely with no wobble and little to no cam-out. If the fit is loose or tight, try the next size.
Look for a snug, square fit with minimal wobble.
What happens if I use the wrong bit size?
Using the wrong size can strip the screw, slip and gouge the material, or wear the bit quickly. It may also damage the driver.
Wrong size can strip screws and damage tools.
Are magnetic bits better for beginners?
Magnetic bits help hold screws in place and speed up setup, but check that the magnet doesn’t attract debris. They’re convenient but optional.
Magnetic bits are helpful but optional.
The Essentials
- Point 1: Match bit size to screw head to prevent cam-out
- Point 2: Know common drive families and their sizes
- Point 3: Test fit before driving to avoid damage
- Point 4: Build a balanced set covering PH, SL, PZ, Torx, and hex
- Point 5: Inspect worn bits and replace promptly
